PRODUCT DESCRIPTION

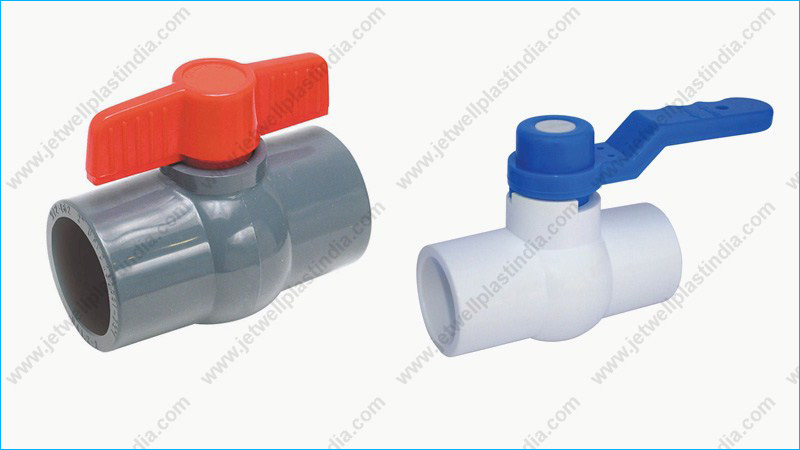

A designed and fabricated PVC ball valve ( Polyvinyl Chloride Valve) is made with the non-flammable material, that is used in transferring liquid or gas. The valves are used as plastic shut off valves, as the material is PVC + UV stabilized withstands sunlight. These valves are specifications detailed and can be used for a variety of fluid materials such as water, air, acids, corrosive chemicals, and bases as well. Mostly the valves are made and supplied by the PVC ball valves manufacturers in Jamnagar, Gujarat, India, with the premium quality.
This valve contains a rotatable ball with the bore, and by rotating it you can manage the flow of the fluid. If you do the quarter turn, perpendicular you can open or block the flow. This is the main purpose of this product, to control the flow of the fluid to transfer or not. Coming on the material is the corrosion-resistant, temperature resistant, and pressure handling material. Also, this material is lightweight and cost-effective, there for the valves are durable and cost-efficient. As compared to steel or brass valves, these valves are used for the low pressure and temperature with the lower mechanical strength.
TECHNICAL SPECIFICATION : |
|
Size : | » 20mm To 110mm |
Body Color : | » Ivory |
Connection : | » Plain |
Handle Color : | » Blue 2 |
Stem : | » Polyvinyl Chloride |
Ball : | » Polyvinyl Chloride |
Body : | » Polyvinyl Chloride |
Steam ‘o’ Ring : | » Acrylonitrile Butadiene Rubber |
Handle : | » Poly Propylene |
Seats : | » EPDM |
