PRODUCT DESCRIPTION

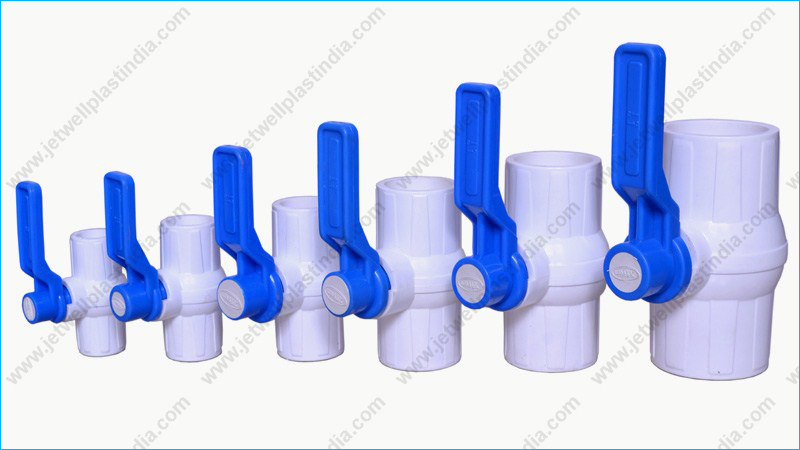

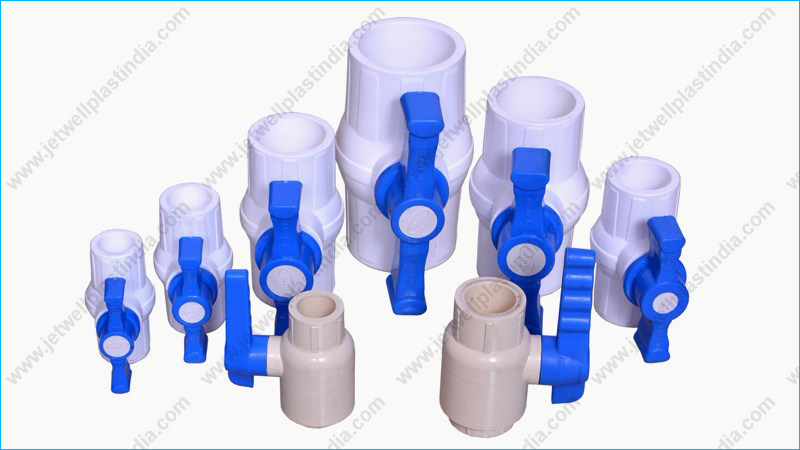

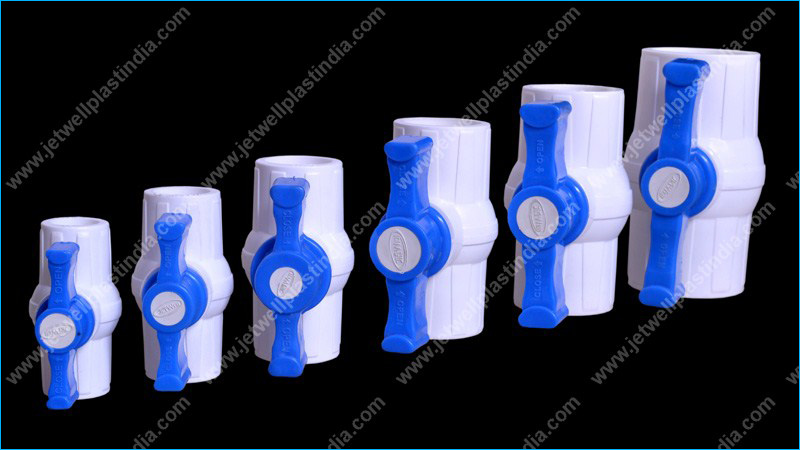

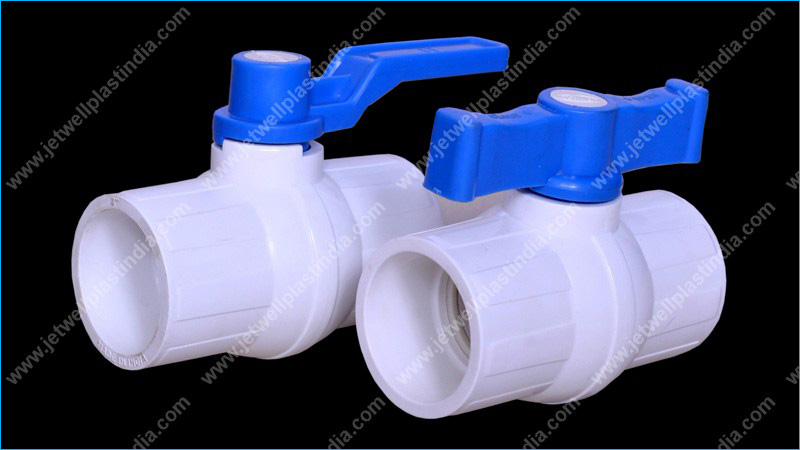

UPVC Ball valve stands for Unplasticized Polyvinyl Chloride Ball Valve. It is used to control the flow. Ball valves use a metal ball with a borehole through the centre, sandwiched between two seats. In this way, a UPVC Ball valve is used to control any pressure generated from the flow. Although UPVC Ball valves can control any flow, low-flow situations are usually preferred because it has been proved to be useful.
Features and manufacturing:
The body or nut of the UPVC Ball valve is made from polypropylene. The clip ring is from acrylic resin, the knob, stem, ball and flange is made up of UPVC. The pressure rating is PN16.
TECHNICAL SPECIFICATION : |
|
| Size : | »15mm To 80mm |
| Body Color : | » White |
| Connection : | » Plain & Threaded |
| Handle Color : | » Blue 2 |
| Stem : | » Unplasticized Polyvinyl Chloride |
| Ball : | » Unplasticized Polyvinyl Chloride |
| Body : | » Unplasticized Polyvinyl Chloride |
| Steam ‘o’ Ring : | » Nitrile Rubber |
| Cap : | » Poly Propylene |
| Handle : | » Poly Propylene |
| Seats : | » EPDM |
| Screw : | » M.S |
